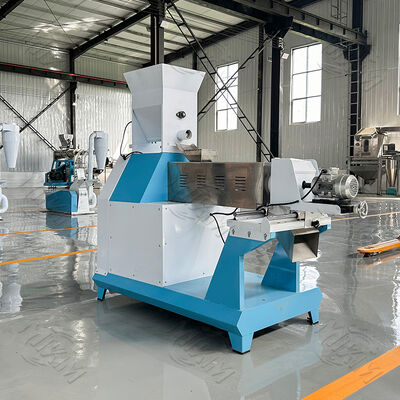

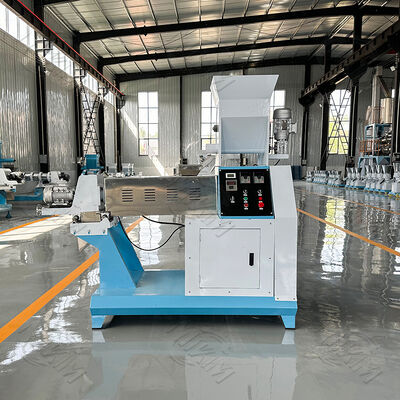

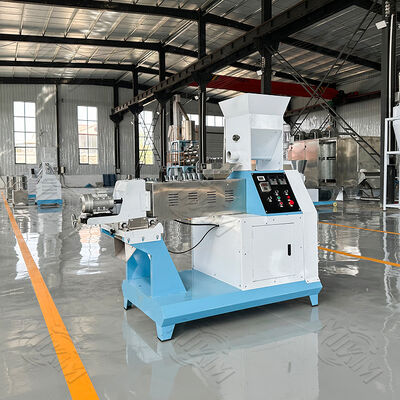

Hot Sale High Quality Manufacturer Sparrow Lark Food Extruder Machine and Poultry Feed Pellet Machine
Pet Food Extrusion Machine
A feed extruder is a piece of equipment used for processing animal feeds. It alters the physical and chemical properties of feed ingredients through high-temperature, high-pressure conditions and mechanical shear forces to enhance their solubility, digestibility, and texture, thereby improving feed utilization by animals.
Working Principle
A feed extruder works by pushing feed ingredients into an extrusion screw and then subjecting them to high temperatures and pressures to extrude the materials. During extrusion, the materials expand and generate heat, causing starch gelatinization and protein denaturation, thereby increasing their solubility and digestibility.
Processing Equipment Components
- Meat Grinder: Processing scope: Pulverising raw materials such as fruit, vegetables, and fresh meat.
- Crusher: Processing scope: Crushing grain raw materials such as maize, wheat, and soybeans.
- Mixer: Blending and mixing crushed raw materials.
- Screw Conveyor: Elevates the mixed material to the hopper of the extruder.
- Feed Extruder: Performs extrusion processing to produce pellets of various shapes.
- Dryer: Hot-air dryer offering rapid drying efficiency and energy savings. Dried feed can be stored for 18-24 months.
- Flavouring Machine: Enhances dried feed by adding fats and flavourings, increasing protein and fat content.
Floating Fish Feed Extruder Process Application
As is well known, aquaculture and animal feed pellets are produced by diesel-powered fish feed extruders. Examples include dog food, cat food, frog feed, turtle feed, crab feed, shrimp feed, and various fish (catfish, tropical fish) feeds. Various shapes of pellets can be produced simply by changing the feeder's die. Furthermore, these pellets range in size from 0.4 mm to 15 mm, suitable for fish of all sizes.
Sample
Floating fish feeds has very strong water stability (wouldn't apart within 16-32 hours), with little pollution on the water. Spongy, porous floating pellet feed for pelagic fish floats in the water, which is easy to observe the fish feeding and growth, conducive to scientific management.
Product Parameters
| Model |
Capacity (kg/h) |
Main Motor (kw) |
Feeder Motor (kw) |
Cutter Motor (kw) |
Screw Diameter (mm) |
Machine Size (m) |
Weight (kg) |
| LX-45 |
40-50 |
5.5 |
0.4 |
0.4 |
φ40 |
1.72 * 0.87 * 1.1 |
360 |
| LX-65 |
120-150 |
15.0 |
0.4 |
0.4 |
φ60 |
2.2 * 2.9 * 1.2 |
550 |
| LX-75 |
200-250 |
18.5 |
0.55 |
0.55 |
φ70 |
2.2 * 3.1 * 1.37 |
650 |
| LX-85 |
300-350 |
22.0 |
1.5 |
0.55 |
φ80 |
2.3 * 3.15 * 1.38 |
850 |
Honors and Certifications
Company Profile
Mikim Machinery is a high-tech enterprise integrating scientific research, design, manufacture, installation and commissioning, and after-sales service. 35 years have been dedicated to the design and production of the feed machinery industry, which has passed many certificates such as CE, ISO, etc. Now we are mainly engaged in two fields: feed pellet machine production line (hammer mill-mixer-conveyor-feed pellet machine-cooling&vibration system-packing and sealing) and feed extruder production line (mixer-twin screw extruder machine-dryer-drum seasoning machine-cooling towers-packing machine). We produce high quality and low price equipment, exported to all over the world, enjoy a good reputation, and perfect after-sales service system can help customers solve all the problems.
Our machines are widely used in various fields of China and have exported to Southeast Asia, Europe, Africa, South America, Middle East Countries, and other areas. European technology, perfect performance. MIKIM Machinery is your reliable mechanical supplier. We have very attractive prices and looking for oversea agents, welcome contact us for further information and you will be surprised of the significant savings that your company can achieve by working with us.
